High Efficiency N‑Type PV Module
G12R
HALF CUT TOPCon
12
YEARS
30
YEARS
High‑efficiency N‑TYPE cells with up to 80% bifaciality increase rear‑
side energy capture
Improved temperature coefficient reduces output loss in high‑
temperature conditions
SuryaTop PPG12GG66.XXX.05 (XXX= 610‑635)
(1000 W/m² irradiance, 25°C cell temperature, AM1.5G spectrum)
| Peak Power Pmax (Wp) | 610 | 615 | 620 | 625 | 630 | 635 |
|---|---|---|---|---|---|---|
| Max Voltage Vmpp (V) | 40.8 | 41.0 | 41.2 | 41.3 | 41.5 | 41.7 |
| Max Current Impp (A) | 14.96 | 15.01 | 15.05 | 15.13 | 15.17 | 15.23 |
| Short Circuit Current Isc (A) | 15.85 | 15.91 | 15.97 | 16.03 | 16.09 | 16.15 |
| Open Circuit Voltage Voc (V) | 48.7 | 48.9 | 49.1 | 49.3 | 49.5 | 49.7 |
| Module Efficiency (%) | 22.58% | 22.77% | 22.95% | 23.14% | 23.32% | 23.51% |
(800 W/m² irradiance, 20°C ambient temp, 1 m/s wind speed)
| Peak Power Pmax (Wp) | 460.0 | 463.7 | 467.3 | 471.5 | 475.1 | 478.9 |
|---|---|---|---|---|---|---|
| Max Voltage Vmpp (V) | 38.0 | 38.2 | 38.3 | 38.5 | 38.6 | 38.8 |
| Max Current Impp (A) | 12.11 | 12.15 | 12.20 | 12.26 | 12.30 | 12.35 |
| Short Circuit Current Isc (A) | 12.80 | 12.85 | 12.89 | 12.94 | 12.99 | 13.04 |
| Open Circuit Voltage Voc (V) | 45.8 | 46.0 | 46.2 | 46.4 | 46.6 | 46.8 |
(1000 W/m² + Φ0.135, AM1.5, 25°C)
| Peak Power Pmax (Wp) | 675.9 | 681.4 | 687.0 | 692.5 | 698.0 | 703.6 |
|---|---|---|---|---|---|---|
| Max Voltage Vmpp (V) | 40.8 | 41.0 | 41.2 | 41.3 | 41.5 | 41.7 |
| Max Current Impp (A) | 16.58 | 16.63 | 16.68 | 16.76 | 16.81 | 16.87 |
| Short Circuit Current Isc (A) | 17.56 | 17.63 | 17.69 | 17.76 | 17.83 | 17.89 |
| Open Circuit Voltage Voc (V) | 48.7 | 48.9 | 49.1 | 49.3 | 49.5 | 49.7 |
1) STC꞉1000 W/M2 IRRADIANCE, 25°C CELL TEMPERATURE, AM1.5G SPECTRUM ACCORDING TO EN 60904‑3
2) TOLERANCE OF RATING AT STC (PMPP / ISC / VOC) [%] ꞉ 0‑3/±5/±5 | ELECTRICAL MEASUREMENT UNCERTAINTY IS WITHIN ± 2%
3) NOCT IRRADIANCE 800 W/M2, AMBIENT TEMPERATURE 20°C, WIND SPEED 1 M/SEC
4) BNPI꞉ 1000W/M2+ɸ.135, BIFACILITY COEFF. (ɸ) AT BNPI PMAX, ISC IS 75±5% & FOR VOC IS 99±10% , AM 1.5, 25°C
5) TOLERANCE OF RATING AT BNPI (PMPP/ ISC/ VOC) [%] ꞉ 0‑3/±5/±5

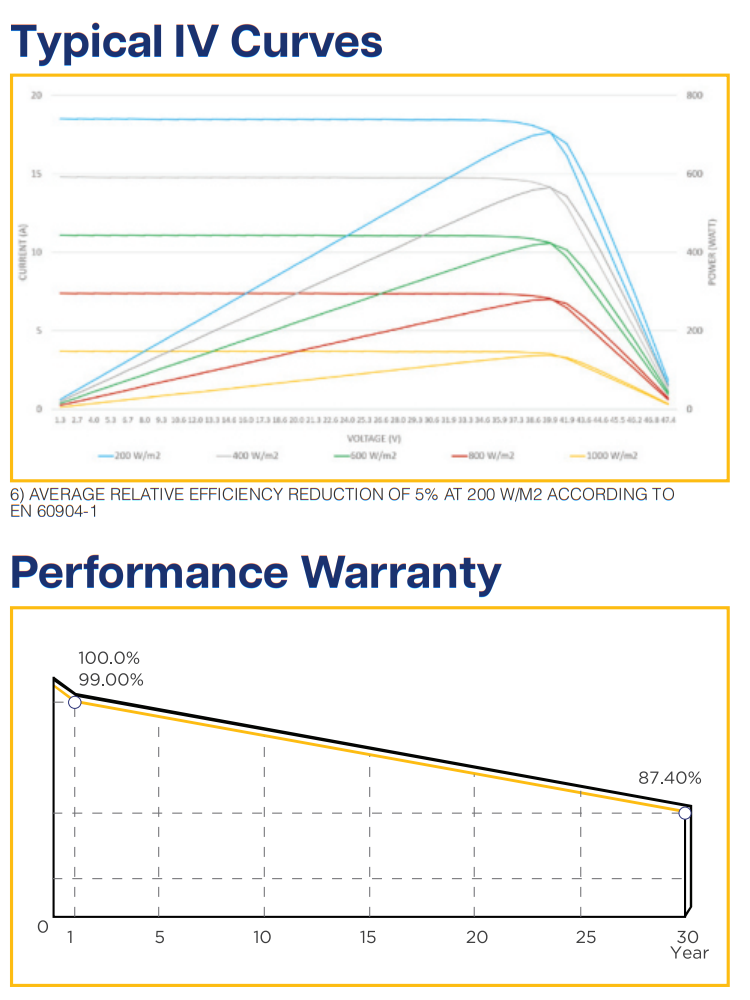

| Warranty Type | Coverage | Details |
|---|---|---|
| Product Warranty | 12 Years | Covers manufacturing defects and material/workmanship issues |
| Performance Warranty | 30 Years (Linear) | Guarantees long-term power output performance |
| 1st Year Degradation | ≤ 1% | Maximum allowable degradation in the first year |
| Annual Degradation (2–30) | ≤ 0.4% per year | From year 2 to year 30 |
| Guaranteed Output @ 30 Yrs | ≥ 87.4% of original rated power | Ensures reliable long-term energy generation |
| Parameter | Value |
|---|---|
| Tc of Open Circuit Voltage (β) | –0.26% / °C |
| Tc of Short Circuit Current (α) | +0.046% / °C |
| Tc of Power (γ) | –0.30% / °C |
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | 2382 × 1134 × 30 mm |
| Weight | 32.1 kg ±5% |
| Superstrate | 2.0 mm ARC-coated semi-tempered glass |
| Cells | 66 (132 half-cut) N-Type bifacial |
| Substrate | Heat-strengthened glass (optional) |
| Frame | Anodised aluminium or alloy steel |
| Junction Box | IP68, split with bypass diodes |
| Cable & Connectors | 200mm (+) / 300mm (–), MC4 compatible |
| Mechanical Load | 5400 Pa (Snow), 2400 Pa (Wind) |
| Max System Voltage | 1500V |
| Max Series Fuse Rating | 30 A |
| Temperature Range | –40°C to +85°C |
| Application Class | Class A (Safety Class II) |
| Quantity / Pallet | 36 Modules |
|---|---|
| Pallets / 40′ Container | 20 Pallets |
| Modules / Container | 720 Modules |
^All (^) certifiations under progress. | **Refer to Power Sphere Renewable’s warranty document for terms and conditions. | 400mm, 1000mm,1200mm cable lengths are also available | Anti‑glare Glass is also available | *As per applicable product | *With additional Cost & Lead Time subject to availability | STC ꞉ Standard Testing Condition | BNPI ꞉ Bifacial Nameplate Irradiance | NOCT ꞉ Nominal Operating Cell Temperature
